Air Cooling Chiller：RCA Series
Temperature Controller
Air Cooling Chiller：RCA Series
RCA-1-2
- U.S. Copeland fully-closed scroll compressor.
- Chilled-water range 5~30°C (model with sub-zero range optional).
- Italian temp controller with LED display for precise, stable temp control.
- SUS304 stainless-steel expansion tank with open chilled-water circulation design.
- Tolerance to ±0.1°C if installed with hot-air bypass valve.
- Optional function: Water shortage warning.
- Heat exchanger of special materials such as SUS304, 316, and titanium alloy.
Machine Colors
| Model | Type | |
| Temperature Range | °C | |
| Capacity | 60HZ | btu / hr |
| kcal / hr | ||
| 50HZ | btu / hr | |
| kcal / hr | ||
| Compressor Horse Power | hp | |
| Refrigerant | ||
| Temp. Controller | ||
| Evaporator | ||
| Condenser | ||
| Chilled Water Tank | liter | |
| Pump | hp | |
| Fan Horse Power | hp | |
| Max. Flow Max. Pressure |
60HZ | l / min |
| kg / cm² | ||
| 50HZ | l / min | |
| kg / cm² | ||
| Piping | Chilled Water | inch |
| Cooling Water | inch | |
| Drain | inch | |
| Total Load | kw | |
| Dimension (W x D x H) |
cm | |
| Approx. Weight | kg | |
RCA-1-2
|
| 5-30 |
| 24,000 |
| 6,048 |
| 20,000 |
| 5,040 |
| 2 |
| R-404A or R-407C |
| LED Temperature Controller |
| Plate type |
| Micro Channel |
| 45 |
| 1 |
| 1/6 |
| 83 |
| 4.2 |
| 83 |
| 4.2 |
| 1 |
| 1/2 |
| 1/2 |
| 2.4 |
| 53 x 85 x 143 |
| 170 |
RCA-1-3
|
| 5-30 |
| 36,000 |
| 9,072 |
| 30,000 |
| 7,560 |
| 3 |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| Micro Channel |
| 100 |
| 1 |
| 2/3 |
| 140 |
| 2.7 |
| 140 |
| 1.9 |
| 1 1/4 |
| 1/2 |
| 1/2 |
| 3.5 |
| 73 x 115 x 176 |
| 352 |
|
RCA-1-5
|
| 5-30 |
| 60,000 |
| 15,120 |
| 50,000 |
| 12,600 |
| 5 |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| Micro Channel |
| 100 |
| 1 |
| 2/3 |
| 140 |
| 2.7 |
| 140 |
| 1.9 |
| 1 1/4 |
| 1/2 |
| 1/2 |
| 5 |
| 73 x 115 x 176 |
| 402 |
RCA-1-8
|
| 5-30 |
| 90,000 |
| 22,680 |
| 75,000 |
| 18,900 |
| 7.5 |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| Micro Channel |
| 125 |
| 1 |
| 1 x 2 |
| 140 |
| 2.7 |
| 140 |
| 1.9 |
| 2 |
| 1/2 |
| 1/2 |
| 7.9 |
| 87 x 190 x 171 |
| 670 |
|
RCA-2-10
|
| 5-30 |
| 120,000 |
| 30,240 |
| 100,000 |
| 25,200 |
| 10(5 x 2) |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| Micro Channel |
| 125 |
| 2 |
| 1 1/4 x 2 |
| 340 |
| 2.3 |
| 300 |
| 2.4 |
| 2 |
| 1/2 |
| 1/2 |
| 10.9 |
| 87 x 190 x 171 |
| 700 |
RCA-2-15
|
| 5-30 |
| 180,000 |
| 45,360 |
| 150,000 |
| 37,800 |
| 15 or (7.5 x 2) |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| LED Temperature Controller |
| 150 |
| 2 |
| 1 1/4 x 3 |
| 340 |
| 2.3 |
| 300 |
| 2.4 |
| 2 |
| 1/2 |
| 1/2 |
| 15.6 |
| 90 x 236 x 190 |
| 860 |
|
RCA-3-20
|
| 5-30 |
| 240,000 |
| 60,480 |
| 200,000 |
| 50,400 |
| 20(10 x 2) |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| LED Temperature Controller |
| 150 |
| 3 |
| 1 1/4 x 3 |
| 440 |
| 2.4 |
| 450 |
| 2.3 |
| 2 1/2 |
| 1/2 |
| 1/2 |
| 20.1 |
| 90 x 236 x 190 |
| 980 |

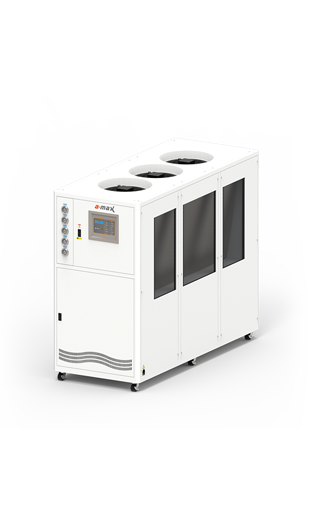

RCA-3-25
|
| 5-30 |
| 300,000 |
| 75,600 |
| 250,000 |
| 60,000 |
| 25(12.5 x 2) |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| LED Temperature Controller |
| 150 |
| 3 |
| 1 1/4 x 3 |
| 440 |
| 2.4 |
| 450 |
| 2.3 |
| 2 1/2 |
| 1/2 |
| 1/2 |
| 23.8 |
| 100 x 246 x 197 |
| 1,050 |
|
RCA-3-30
|
| 5-30 |
| 360,000 |
| 90,720 |
| 300,000 |
| 75,600 |
| 30(15 x 2) |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| LED Temperature Controller |
| 150 |
| 3 |
| 1 1/4 x 3 |
| 440 |
| 2.4 |
| 450 |
| 2.3 |
| 2 1/2 |
| 1/2 |
| 1/2 |
| 27.6 |
| 100 x 246 x 197 |
| 1,170 |
RCA-5-40
|
| 5-30 |
| 480,000 |
| 120,960 |
| 400,000 |
| 100,800 |
| 40(10 x 4) |
| R-404A or R-407C |
| LED Temperature Controller |
| Tube-in-shell Type |
| LED Temperature Controller |
| 200 |
| 5 |
| 2 x 3 |
| 855 |
| 2.0 |
| 875 |
| 1.5 |
| 3 |
| 1/2 |
| 1/2 |
| 38.3 |
| 108 x 310 x 220 |
| 1,612 |
Protection system
Pump overload protection、Compressor overload protection、Adjustable relief circuit、Phase failure & reversal protection、Fuse-less switch、Refrigerant insufficiency protection、Poor-heat-dissipation protection、Antifreeze protection、Fan motor overload protection
Optional Equipment
RS485 communications interface、Vertical high-pressure pump、Tank level and water-shortage warning system
